Periodic Table of the fundamental particles
It's certainly not periodic, and it's not really a table, more a roll-call of uneasy bedfellows, whose allegiances are to three disparate theories of physics - quantum chromodynamics (QCD, quarks), quantum electroweak dynamics (QED, leptons) and General Relativity (gravitons maybe ...)
Particles are no longer regarded as independent dynamic entities, but as nodes or knots in all-pervasive fermionic fields, and their interactions are no longer regarded as mediated by forces, but by exchanges of energetic pulses (such as photons), themselves cusps or twists in all-pervasive bosonic fields.
I cannot pretend to understand the underlying mathematics of it all.
I'm not going to say much, because I hardly understand it all myself. But it's very important to stress that these are just the fundamental particles – there are myriad composites that aren't represented here (baryons such as protons and neutrons that comprise three quarks and mesons that comprise two quarks).
I'd very much appreciate any corrections or improvements to the summaries provided below.

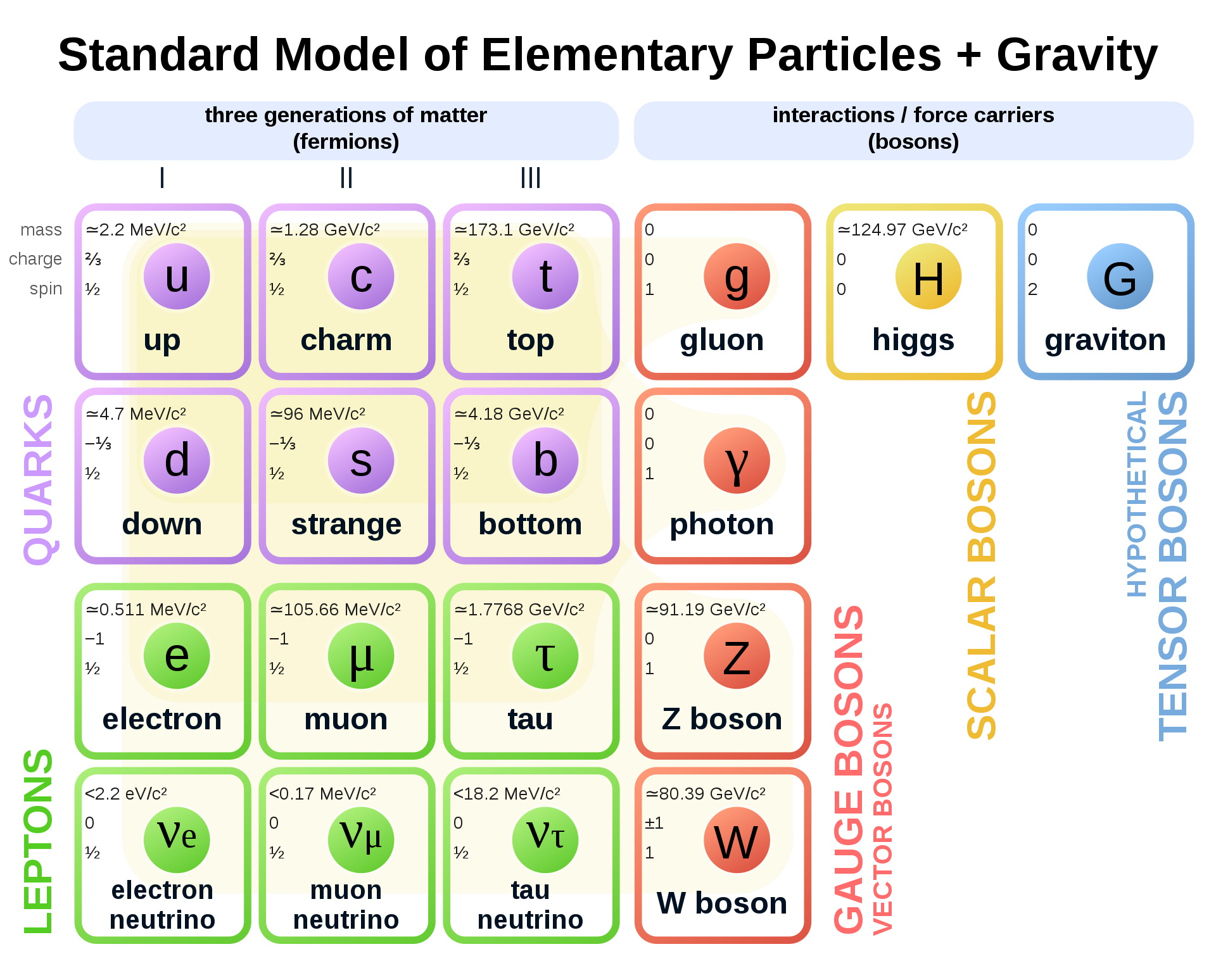

Bosons have integer spin quantum number (0, 1, 2, ...)
There are 3 generations (I, II, III) of fermions
Each generation comprises 2 quarks and 2 leptons
Only generation I impinges upon us in our familiar low-energy world
Generations II and III only become evident in exotic high-energy experiments
Quarks have 3 possible colour-charges: red, yellow or green
Note that, as foreshadowed above,
Protons comprise two Up quarks plus one Down quark
Neutrons comprise two Down quarks plus one Up quark
and according to the rules of spin combination are therefore fermions.
And note likewise that
Mesons comprise one quark and one antiquark
and according to the rules of spin combination are therefore bosons.
The gluons mediate the strong force
The W± and Z particles mediate the weak force
Photons mediate the electromagnetic force
Gravitons mediate the gravitational force
Photons and gravitons travel at the speed of light ('luminals'), as the forces that they mediate are long-range, and we are aware of their effects as they control extra-nuclear processes
Gluons, W± and Z particles travel at less than light speed ('sub-luminals', 'tardons'), as the forces that they mediate are short-range, but we are unaware of their effects as they control intra-nuclear processes
The designation of bosons as scalar, vector, or tensor, reflects their particular symmetry properties
Note that matter particles listed can also be categorised by the fundamental forces that they experience.
Particles, such as quarks and composites of quarks (such as mesons, protons, neutrons), that feel the strong force are called hadrons
Hadrons also feel the weak force, and, possessing electric charge and/or magnetic spin, presumably also feel the electromagnetic force
Leptons such as electrons, muons, tau(on)s feel only the electromagnetic force and the weak force
Neutrinos feel only the weak force
Note also (though irrelevant to present purposes) that
The name of an antiparticle is formed by prefixing the name of the particle by "anti" (though antielectrons are sometimes alternatively known as positrons)
According to the controversial theory of super-symmetry:
Every type of fermion has a 'super-symmetric' bosonic counterpart
Every type of boson has a 'super-symmetric' fermionic counterpart
The bosonic name of a supersymmetric fermion is formed by prefixing the name of the fermion by "s" (so a supersymmetric electron would be a selectron)
The fermionic name of a supersymmetric boson is (generally) formed by modifying the name of the boson to end in "ino" rather than "on" (so a supersymmetric photon would be a photino)
It's all rather reminiscent of the proverbial Wild West Zoo
Most importantly, every single fundamental particle in the Standard Model is intrinsically point-like, of no measurable size whatsoever. And this is of course what one would expect from 'my' previous a priori argument. Spatial extension is an emergent property – just as tables and chairs could in principle be squashed to an unimaginably small, but still finite, agglomeration of atoms, these could in principle be deconstructed into a collection of quarks and leptons comfortably housed in a Euclidean point.
The quarks, leptons and bosons of the Standard Model are point-like particles. Every other subatomic particle ... is an extended particle. The most familiar are the protons and neutrons that make up the nucleus of an atom, but there are many others ... the defining feature of [which] is that they have a reasonably measurable size (which happens to be about the size of a proton).
The situation is complicated, as any satisfactorily simple situation always is, as per Mencken ("for every complex problem, there is a solution that is simple, obvious, and wrong") and Einstein ("everything must be made as simple as possible, but no simpler"), by the uncooperative complexity of empty space itself, first predicated by Dirac, that the Democritan void is teeming with submerged entities that manifest themselves as virtual particles with a lifespan inversely proportional to their energy, that surround real particles and, so to speak, smudge their lipstick and impose a finite effective size upon them.
Indeed there is worse to come sizewise, with the advent of theories (entirely unsupported by high-energy experiments as far as I know, ie not very far) that the really fundamental cosmic entities are not necessarily points (zero-dimensional) but strings (one-dimensional) and [mem]branes (multi-dimensional). IMHO, this is merely a mathematicians' fantasy playground, of enormous complexity, and no empirical reality. Talmudic or Scholastic, take your pick. But to me, none of this really matters – it's all mathematics rather than avoirdupois, and has no bearing on my belief that what we experience in everyday life as 'material', principally size and inertia, is just an emergent property, an epiphenomenon, compounded from unimaginable squillions of utterly immaterial entities as specified by the Demiurges that I humorously (?) introduced rather earlier on.
But the more genuinely complicated it becomes, until only Ed Witten and Roger Penrose really understand it all, the greater respect I have for Creator Mundi.
 |
|
|
There seem to be two distinct modes of quantisation available to material systems:
- 'Absolute' quantisation, such as that of action or angular momentum (dynamic or intrinsic) and charge, in both of which the quantities concerned are invariably multiples or sub-multiples of a basic fundamental unit.
- 'Sui generis' quantisation, such as that of energy, in which the quantities concerned depend entirely on what sort of dynamics are involved.
It's not really for me to speculate why - though cleverer people than me know, they don't let on – but I suspect it all depends on symmetry principles.
But there are also ancestral voices prophesying the possibility of quantised space and time, and luxuriating in the bath this morning (Nov 2019), I started to wonder what the units might be, and how they would be related to Planck's constant (h).
It's easy to choose the names of the units concerned, but somewhat harder to reconcile them. For time, the obvious unit is the 'chronon', from the Greek (Chronos). For space. however, it's not so obvious – perhaps 'salton' or 'modon' from the Latin (saltus = leap or modus = measure), or 'metron' from the French (metre).
The fundamental units of space and time, call them what one may, also have to conform to the speed (c) of light in vacuo, as well as Planck's constant. Planck himself, at the turn of the twentieth century (how recent that sounds), was one of the first to suggest such possibilities, so I think I have nothing further to contribute, except to quote the so-called Planck units of length, time and speed
Length = √(hG/2πc3)
Time = √(hG/2πc5)
Speed = √(hG/2πc3) / √(hG/2πc5) = c
and emphasise that these are not necessarily irreducible quanta of the variables concerned!
Lastly, the etymology of the particle names so far encountered is quite interesting and, on the whole, helpful.
| Particle type | Origin | Meaning | Named for or by |
| baryon | Greek | barus = heavy | |
| boson | Bose | ||
| electron | Greek | amber | |
| fermion | Fermi | ||
| gluon | English | glue | Gell-Mann |
| graviton | Latin | gravis = heavy | |
| hadron | Greek | hadros = bulky | |
| lepton | Greek | leptos = small | |
| meson | Greek | meson = middle | |
| neutrino | Italian | little neutron | Fermi |
| neutron | English | neutral | |
| photon | Greek | phos = light | |
| proton | Greek | protos = first | |
| quark | James Joyce | one of three | Gell-Mann |
